Lamp IPX5 waterproof detection line test plan

Category： Container waterproof test

program purpose

The IPX5 waterproof detection line is used to detect whether the LED lamps can still be used normally when the LED lamps are exposed to rain or water seepage. It is mainly aimed at testing the sealing performance of the outer shell of the lamp, and testing whether the quality of the lamp meets the IP shell protection level standard.

An Introduction

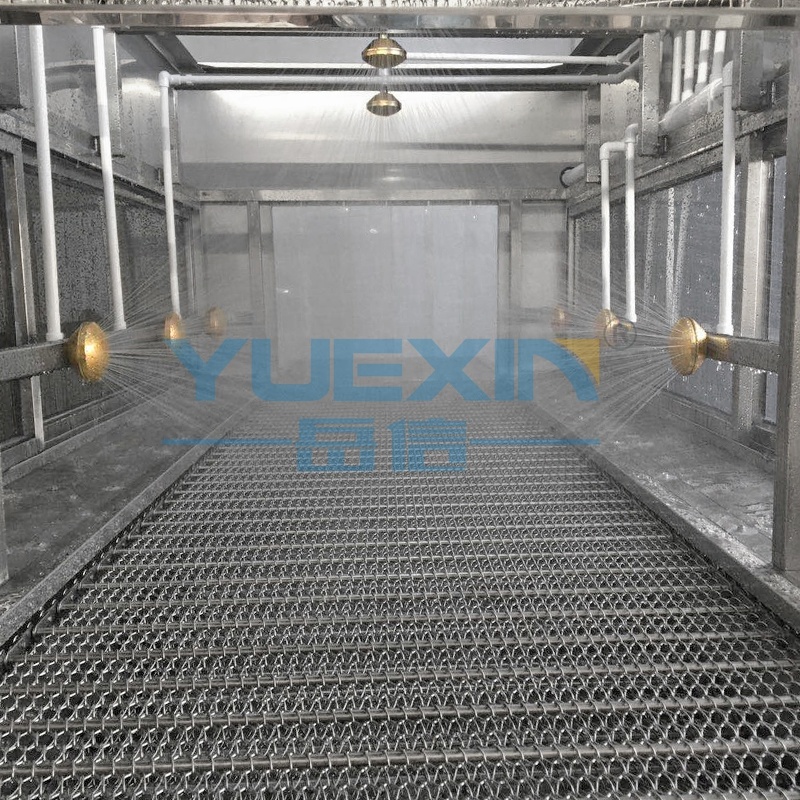

The waterproof IPX5 waterproof detection line technical scheme of the lamp is composed of 3 IPX5 spray guns, waterproof cover, stainless steel cover, test sample table, stainless steel chain, stainless steel water basin, glass observation window and so on. It is a 360° waterproof spray test for the lamp shell, and a multi-angle waterproof level test for parts and accessories.

Lamp IPX5 waterproof detection line test plan

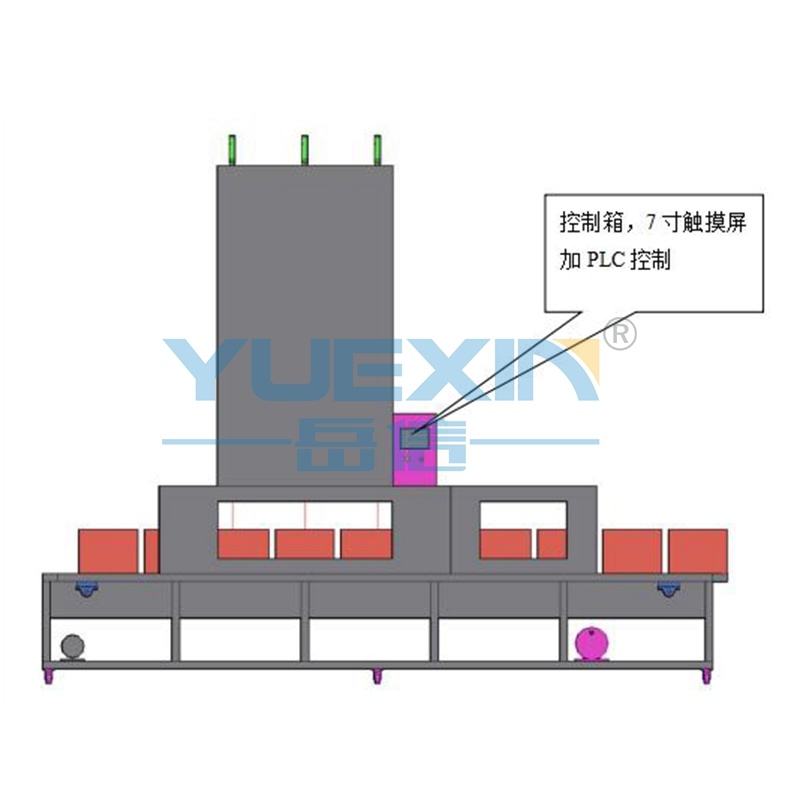

IPX5 waterproof detection line test scheme for lamps - reference diagram

[Spray rainfall] IPX5 waterproof detection line spray flow rate is 12.5L/min, spray gun aperture: ¢6.3mm, distance between spray gun and sample surface: 2.5-3 meters;

[Chain speed] The chain speed of the waterproof IPX5 waterproof detection line technical scheme of the lamp is 1.5m/min, which is equivalent to measuring 3 pieces in the first minute, and the output in 12 hours a day is 2000 pieces;

[Chain material] 304 stainless steel chain, sprayed with rubber paint on the surface, which can effectively increase friction and prevent sample damage;

【Drying system】A set of air knife drying system, the working principle of the air knife: After the compressed air enters the air knife, it is blown out at high speed with a thin airflow sheet with a thickness of only 0.05 mm. Through the Coanda effect principle and the special geometric shape of the air knife, this sheet air curtain can hold 30 to 40 times the ambient air at most, forming a thin, high-strength, high-flow impingement air curtain.

program value

The IPX5 waterproof detection line technology solution provides a customized test plan for the quality inspection of LED lamps, which can test the sealing performance of various lamps and the waterproof function of lamps in natural rainy environments.
