IPX9k Rain Test Chamber, 1200L

Category:

IPX9K High-Temperature Spray Test Chamber

Reference standard no:

Diameter: approximately 1280×980×1650 mm Specimen dimensions: ≤400×300×300 mm Nozzle adjustment range: 100–200 mm Tested products: power battery packs, storage batteries, connectors, sensors, etc. Spray flow rate: 14–16 L/min; nozzle angles: 0°, 30°, 60°, 90° Water temperature: ambient (25°C); 80 ± 5°C (tolerance can be customized) Collaboration cases: Huawei, BYD, Omron, DJI, Jabil, and others Testing requirements: customizable Application areas: new energy power batteries, automotive components, electronics and electrical engineering, security, lighting, and other industries.

As a professional equipment manufacturer, Yuexin always insists on the route of independent innovation and is committed to providing better waterproof testing solutions. The company has applied for more than 30 patent certificates and passed the national high-tech enterprise certification. The company has its own brand and has passed the GB/T29490-2013 intellectual property management system certification.

Can be customized according to customer requirements

Order Hotline:18122108955

Inquiry

Product description
parameter
Test rendering

construction scheme

Series Products

Product Details:

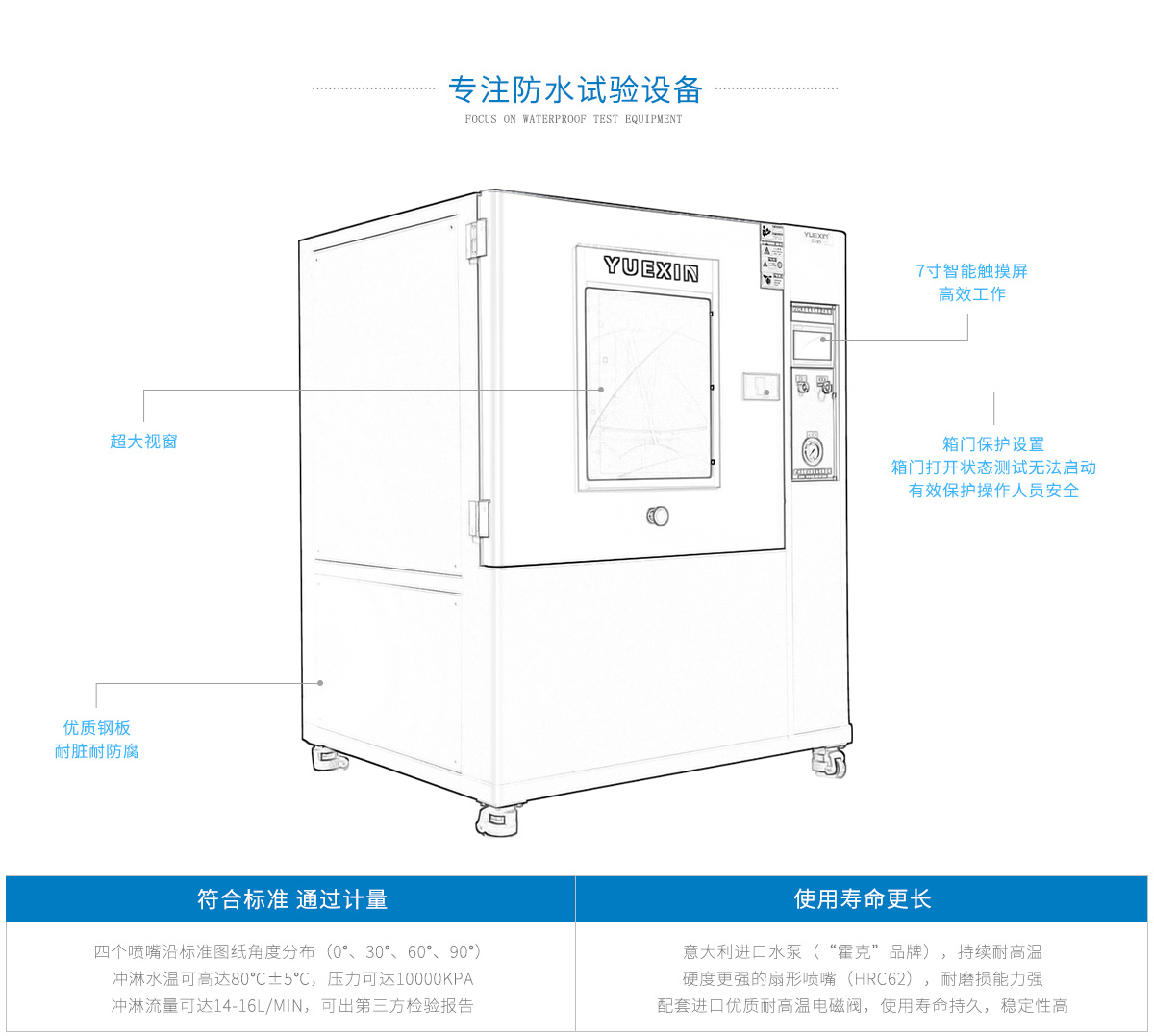

Basic-model IPX9 rain test chamber It meets the standard IPX9K spray‑test requirements, features a fully equipped configuration, and offers outstanding value for money. The water temperature can reach up to 80°C, with an adjustable pressure range of 8–10 MPa, while retaining the complete four‑angle standard spray pattern. The unit is constructed from thick stainless steel, ensuring long‑term durability without deformation or leakage. Its control system is intuitive, allowing technicians to master operation within minutes. Designed for small components such as motorcycle parts, compact charging stations, and household pressure washers, it is available in ample stock, with fast order processing and prompt shipping.
Key words:
- IPX9 Rain Test Chamber

Size parameters	Inner box size	800×800×800mm
	Overall Dimensions	1280×980×1650mm
	Turntable diameter	φ400mm
	Nozzle adjustable range	100-200mm
	Recommended sample size	≤400×300×300mm

performance parameter	flow	14-16 L/min
	Water spray pressure range	8000-10000Kpa
	Turntable bearing	50kg
	Turntable speed	4-10 rev/min
	water temperature range	0-80℃

Conditions of Use	voltage	AC 380V
	power	10.0kw
	Recommended site size	Length×width≥2000×1200mm
	Water conditions	Purified water is preferred; external tap water is sufficient
