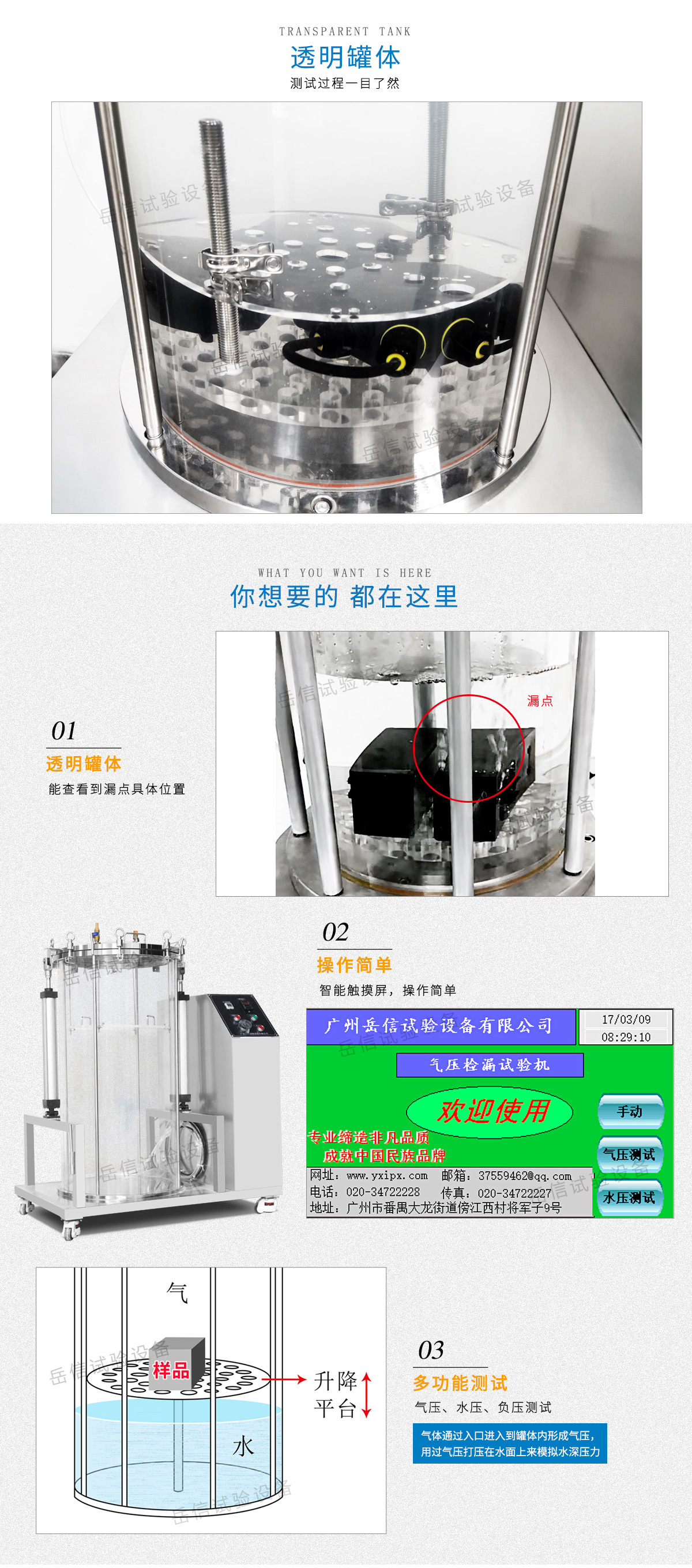

IPX8 water pressure leak detector

Reference standard no:

Function: IPX8, ip68, immersion test, transparent tank can see the leak point; case: Shandong Saos detection, Sinocare Bio; scene use: smart phone, water meter, sensor, camera, etc.; simulated water depth: 1-10 meters; model : YX-JL-S10C-190L (pure water pressure test); the test water depth and tank volume can be customized; there are three modes of water pressure, air pressure and negative pressure to choose from; the regular warranty is 2 years, and the full delivery is extended. 2 months

As a professional equipment manufacturer, Yuexin always insists on the route of independent innovation and is committed to providing better waterproof testing solutions. The company has applied for more than 30 patent certificates and passed the national high-tech enterprise certification. The company has its own brand and has passed the GB/T29490-2013 intellectual property management system certification.

Can be customized according to customer requirements

Order Hotline:18122108955

  • IPX8 water pressure leak detectorIPX8Water pressure leak detectorIPX8 water pressure leak detectorTransparent IPX8

    Key words:
    • IPX8 water pressure leak detector
  • Size parameters

    Inner dimension

    About diameter 500×height 1000mm


    Overall Dimensions

    Length 650×width 850×height 1300mm


    Recommended sample size





    performance parameter

    pressure range

    Negative pressure range: -0.05-0MPa; Positive pressure range: 0.01-0.5MPa


    Exhaust pressure



    testing time

    0-999999 seconds


    Early warning function

    After the test is completed, the buzzer alarm prompts




    Conditions of Use


    AC 220V





    site conditions

    The ground is flat and the load-bearing capacity of the ground is not less than 200kg/㎡


    Water conditions

    Tap water/pure water, install 4 taps


    Air source conditions

    The user prepares his own air compressor, the recommended output air pressure : 0.6Mpa—0.8Mpa. Install female quick connector
