IPX8 vacuum leak detector

Reference standard no:

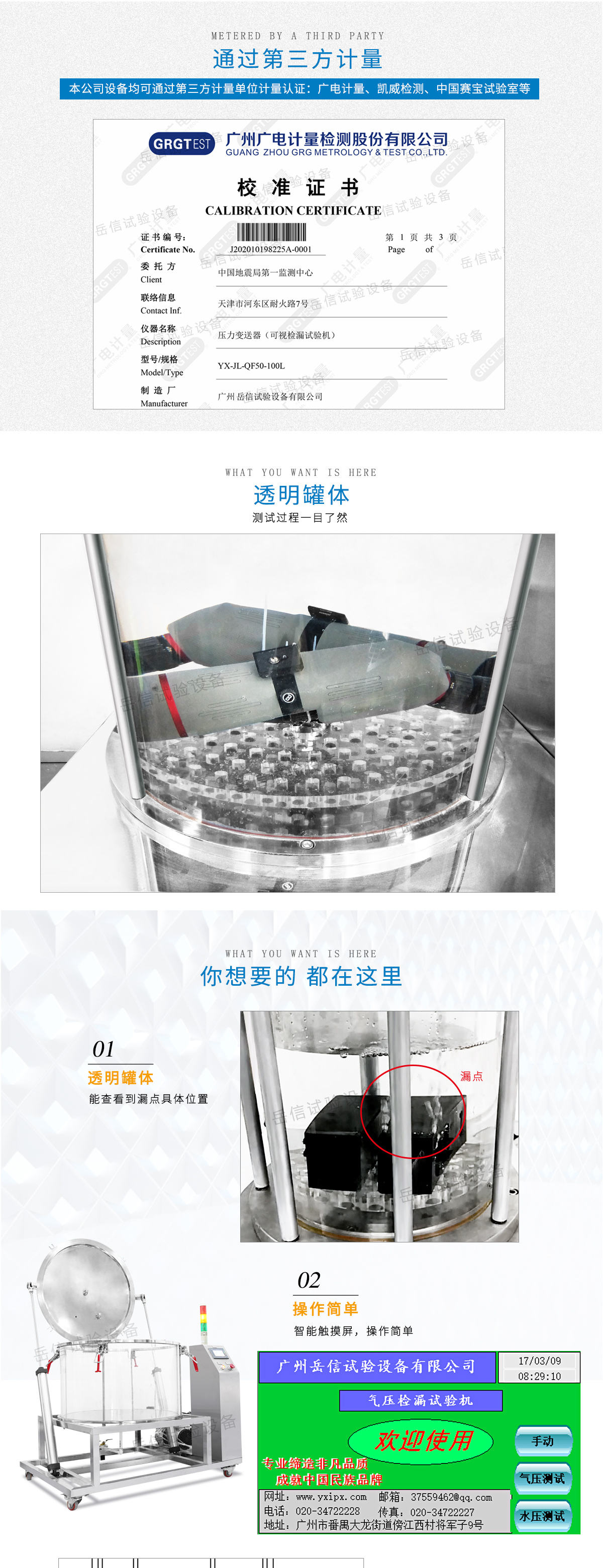

Function: IPX8, ip68, waterproof test, transparent tank body can see the leak point; case: Xi'an Jiaotong University, Songshan Lake Materials Laboratory; scene use: Bluetooth headset, connector, camera, etc.; simulated water depth: 1-8 meters; model : YX-JL-F8T-200L (negative pressure test); test water depth and tank volume can be customized; there are three modes of water pressure, air pressure and negative pressure to choose from; conventional warranty is 2 years, full delivery extended warranty 2 month

As a professional equipment manufacturer, Yuexin always insists on the route of independent innovation and is committed to providing better waterproof testing solutions. The company has applied for more than 30 patent certificates and passed the national high-tech enterprise certification. The company has its own brand and has passed the GB/T29490-2013 intellectual property management system certification.


Can be customized according to customer requirements

Order Hotline:18122108955

  • IPX8 vacuum leak detectorIPX8 water pressure testerIPX8 leak detectorIPX8

    Vacuum leak detectorIPX8 vacuum leak detector

    Key words:
    • IPX8 vacuum leak detector
  • Size parameters

    Inner dimension

    About diameter 770×height 450mm



    Overall Dimensions

    Length 1285×width 880×height 1100mm



    Recommended sample size

    ≤φ480×H550mm







    performance parameter

    pressure range

    Negative pressure range: -0.05-0MPa; Positive pressure range: 0.01-0.5MPa



    Exhaust pressure

    0.55Mpa



    testing time

    0-999999 seconds



    Early warning function

    After the test is completed, the buzzer alarm prompts







    Conditions of Use

    voltage

    AC 220V



    power

    100W



    site conditions

    The ground is flat and the load-bearing capacity of the ground is not less than 200kg/㎡



    Water conditions

    Tap water/pure water, install 4 taps



    Air source conditions

    The user prepares his own air compressor, the recommended output air pressure : 0.6Mpa—0.8Mpa. Install female quick connector
