IPX8 waterproof test box

Category:

Visible IPX8

IPX8 pressure immersion test machine

Reference standard no: 1056269045914755072

Function: IPX8, ip68, water immersion test, transparent tank body can see the water leakage point; case: Jiangxi Jiangling Group, Huizhou Click Technology; scene use: underwater lamps, sensors, auto parts, communication equipment, etc.; simulated water depth: 1 -10 meters (positive pressure 0.01-0.1Mpa); model: YX-JL-QF10C-170L; test water depth and tank volume can be customized; there are three modes of water pressure, air pressure and negative pressure to choose from; conventional warranty for 2 years , the full payment will be extended for 2 months

As a professional equipment manufacturer, Yuexin always insists on the route of independent innovation and is committed to providing better waterproof testing solutions. The company has applied for more than 30 patent certificates and passed the national high-tech enterprise certification. The company has its own brand and has passed the GB/T29490-2013 intellectual property management system certification.

Can be customized according to customer requirements

Order Hotline:18122108955

Inquiry

Product description
parameter
Test rendering

construction scheme

Series Products

Key words:
- IPX8 waterproof test box

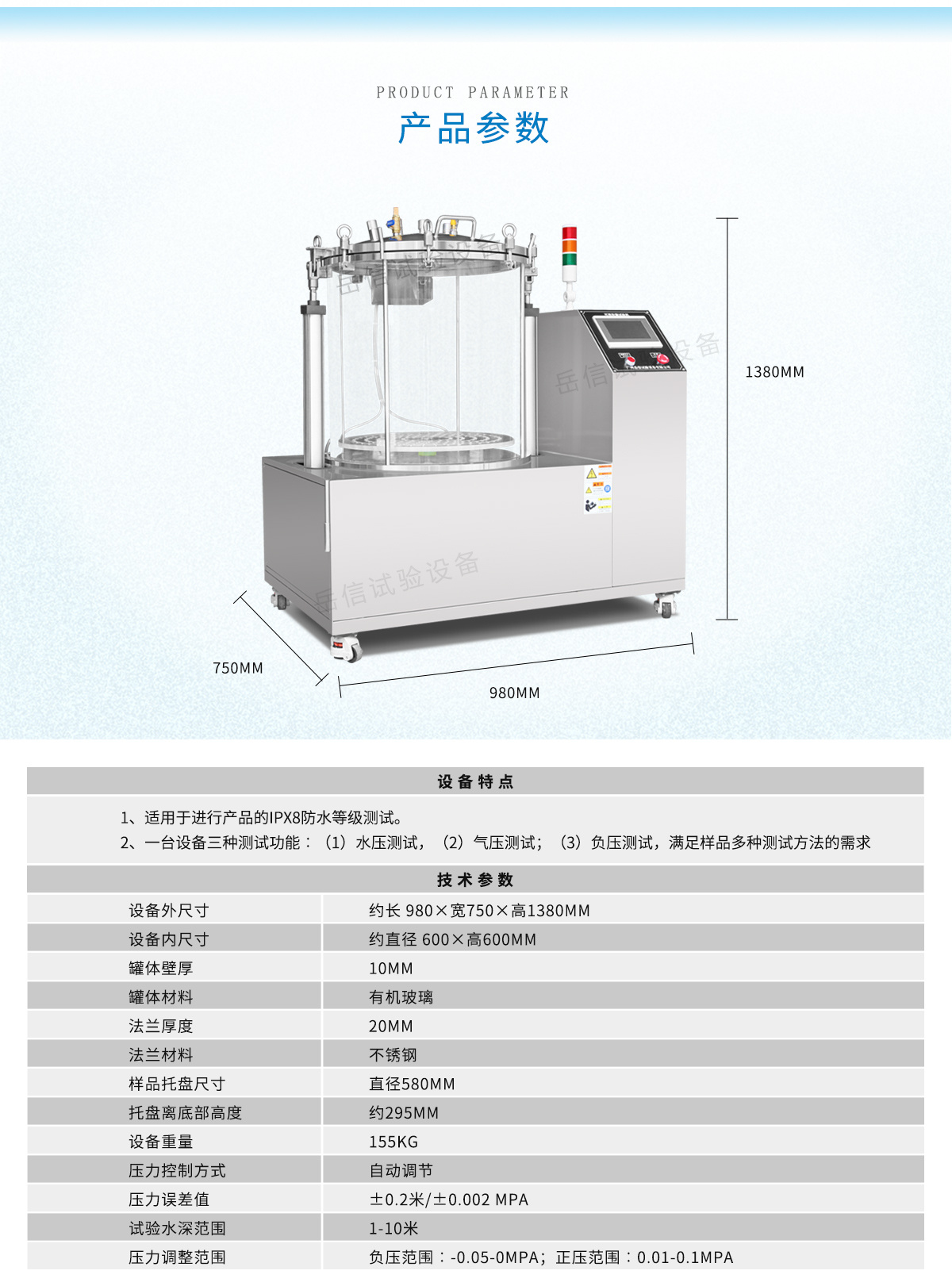

Size parameters	Inner dimension	About diameter 600×height 600mm
	Overall Dimensions	Length 980×W750×H 1380mm
	Recommended sample size	≤φ480×H550mm

performance parameter	pressure range	Negative pressure range: -0.05-0MPa; Positive pressure range: 0.01-0.5MPa
	Exhaust pressure	0.55Mpa
	testing time	0-999999 seconds
	Early warning function	After the test is completed, the buzzer alarm prompts

Conditions of Use	voltage	AC 220V
	power	100W
	site conditions	The ground is flat and the load-bearing capacity of the ground is not less than 200kg/㎡
	Water conditions	Tap water/pure water, install 4 taps
	Air source conditions	The user prepares his own air compressor, the recommended output air pressure : 0.6Mpa—0.8Mpa. Install female quick connector
