ipx8 withstand voltage tester

Category:

Visible IPX8

IPX8 pressure immersion test machine

Reference standard no: 1056274006702645248

Function: IPX8, ip68, waterproof test, transparent tank body can see the water leakage point; case: Shanghai Jiaotong University, United Steel Fastening System (Shanghai); scene use: computer software and hardware, precision fasteners, technical research, etc.; simulated water depth : 1-10 meters; model: YX-JL-QF10-40L (negative pressure, air pressure test); test water depth and tank volume can be customized; there are three modes of water pressure, air pressure, and negative pressure to choose from; regular warranty 2 Years, 2 months extended warranty for full payment

As a professional equipment manufacturer, Yuexin always insists on the route of independent innovation and is committed to providing better waterproof testing solutions. The company has applied for more than 30 patent certificates and passed the national high-tech enterprise certification. The company has its own brand and has passed the GB/T29490-2013 intellectual property management system certification.

Can be customized according to customer requirements

Order Hotline:18122108955

Inquiry

Product description

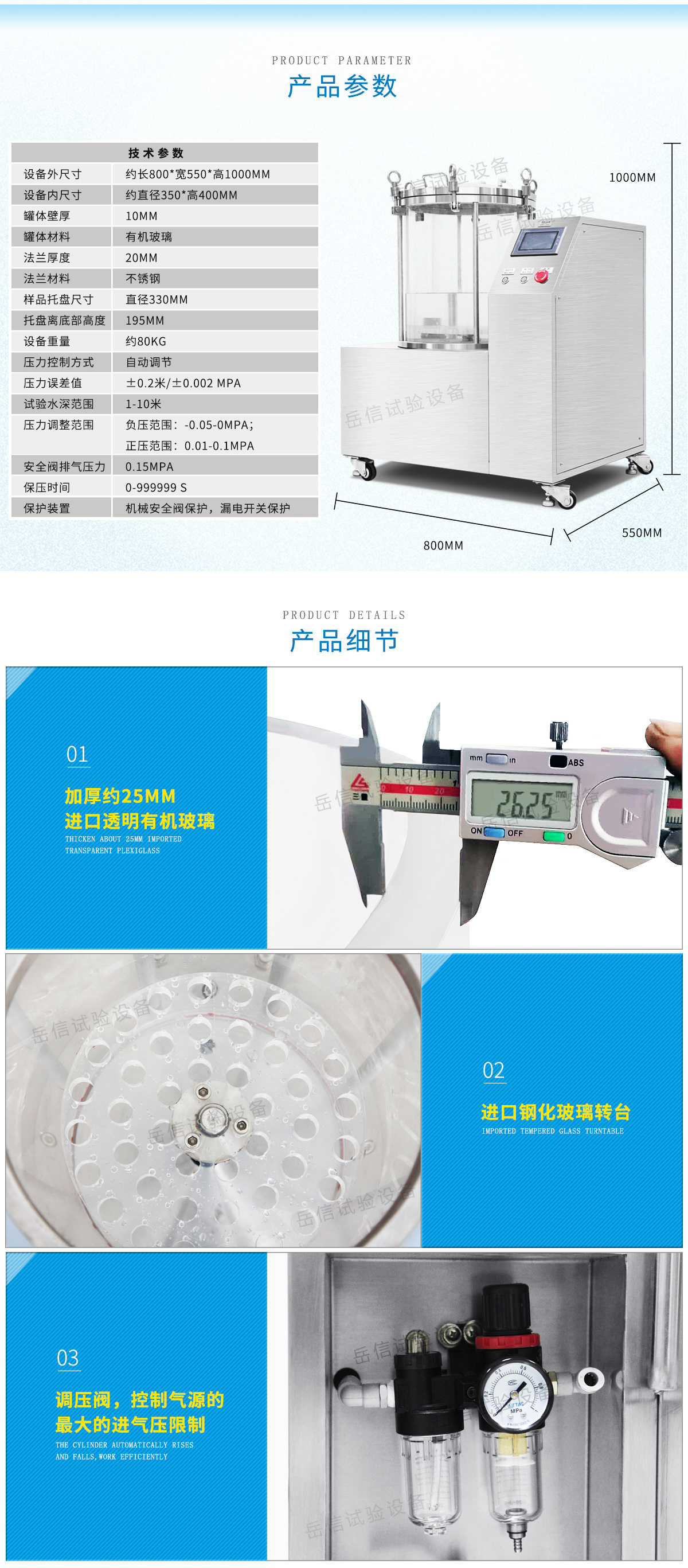

parameter
Test rendering

construction scheme

Series Products

Key words:
- ipx8 withstand voltage tester

Size parameters	Inner dimension	φ350×H400mm
	Overall Dimensions	750×650×900mm
	Tray diameter	φ300mm
	pallet height	210mm
	Recommended sample size	≤φ300×H180mm

performance parameter	pressure range	0-0.15 Mpa
	Negative pressure range	-0.008-0 Mpa
	display accuracy	0.001Mpa
	testing time	0-9999 seconds

Conditions of Use	voltage	AC 220V
	power	100W
	site conditions	Flat desktop; length × width ≥ 1200 × 1000mm
	Water conditions	It is recommended to use pure water first; clean tap water is also acceptable (the water needs to be changed at least once a week)
