IPX14 integrated rain box

Reference standard no:


As a professional equipment manufacturer, Yuexin always insists on the route of independent innovation and is committed to providing better waterproof testing solutions. The company has applied for more than 30 patent certificates and passed the national high-tech enterprise certification. The company has its own brand and has passed the GB/T29490-2013 intellectual property management system certification.


Can be customized according to customer requirements

Order Hotline:18122108955

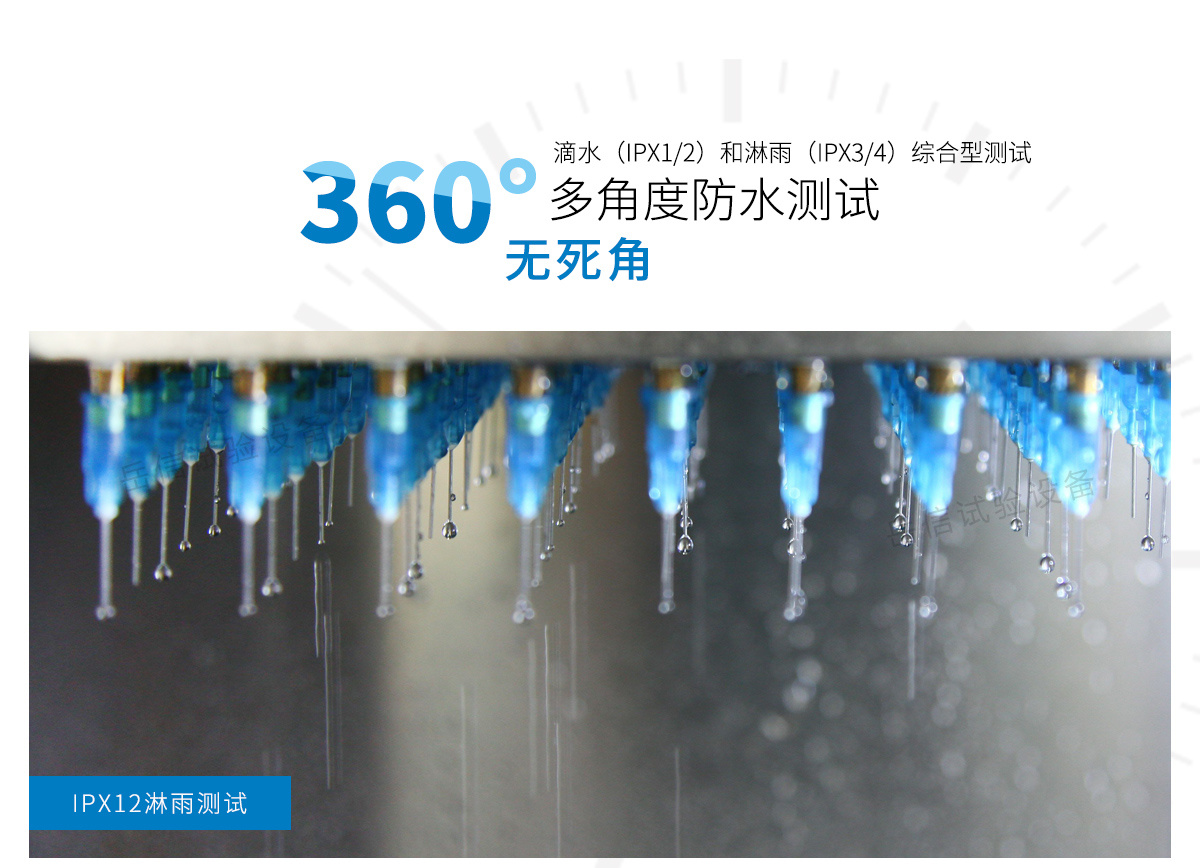

  • IPX14 integrated rain box small machine Drip area 200×200mm Comprehensive test Suitable for various product spare parts and other rain tests Water circulation Sustainable water supply test pump head 8 meters filter impurities Easy to change needles IPX14 integrated rain box New pipes and nozzles Flow manually adjustable Rain Test Chamber Multi-angle waterproof test Comply with IPX34 level test IPX3 swing tube plus or minus 60° PX4 swing tube plus or minus 180° Stainless steel turntable can be tilted 0° or 15° Drip board Production R & D manufacturers IPX14 integrated rain box

    Key words:
    • IPX14 comprehensive rain test machine
  • Size parameters Inner box size 500×500×500mm
      Overall Dimensions 950×680×1500mm
      Recommended sample size ≤200×120×120mm
      Drip area 200×200mm
      swing tube diameter φ400mm
      Turntable diameter φ200mm
      Nozzle diameter φ0.4mmm



    performance parameter flow range IPX1/2:0-180 ml/min IPX3/4:0-1 L/min
      swing angle ≤350°
      Turntable bearing 20kg
      control method touch screen settings



    Conditions of Use voltage AC 220V
      power 1.0kw
      Recommended site size Length×width≥1800×1500mm
      Water conditions Pure water is preferred; tap water is also acceptable (with a 3-meter water pipe)
