Large comprehensive rain box

Reference standard no:


As a professional equipment manufacturer, Yuexin always insists on the route of independent innovation and is committed to providing better waterproof testing solutions. The company has applied for more than 30 patent certificates and passed the national high-tech enterprise certification. The company has its own brand and has passed the GB/T29490-2013 intellectual property management system certification.


Can be customized according to customer requirements

Order Hotline:18122108955

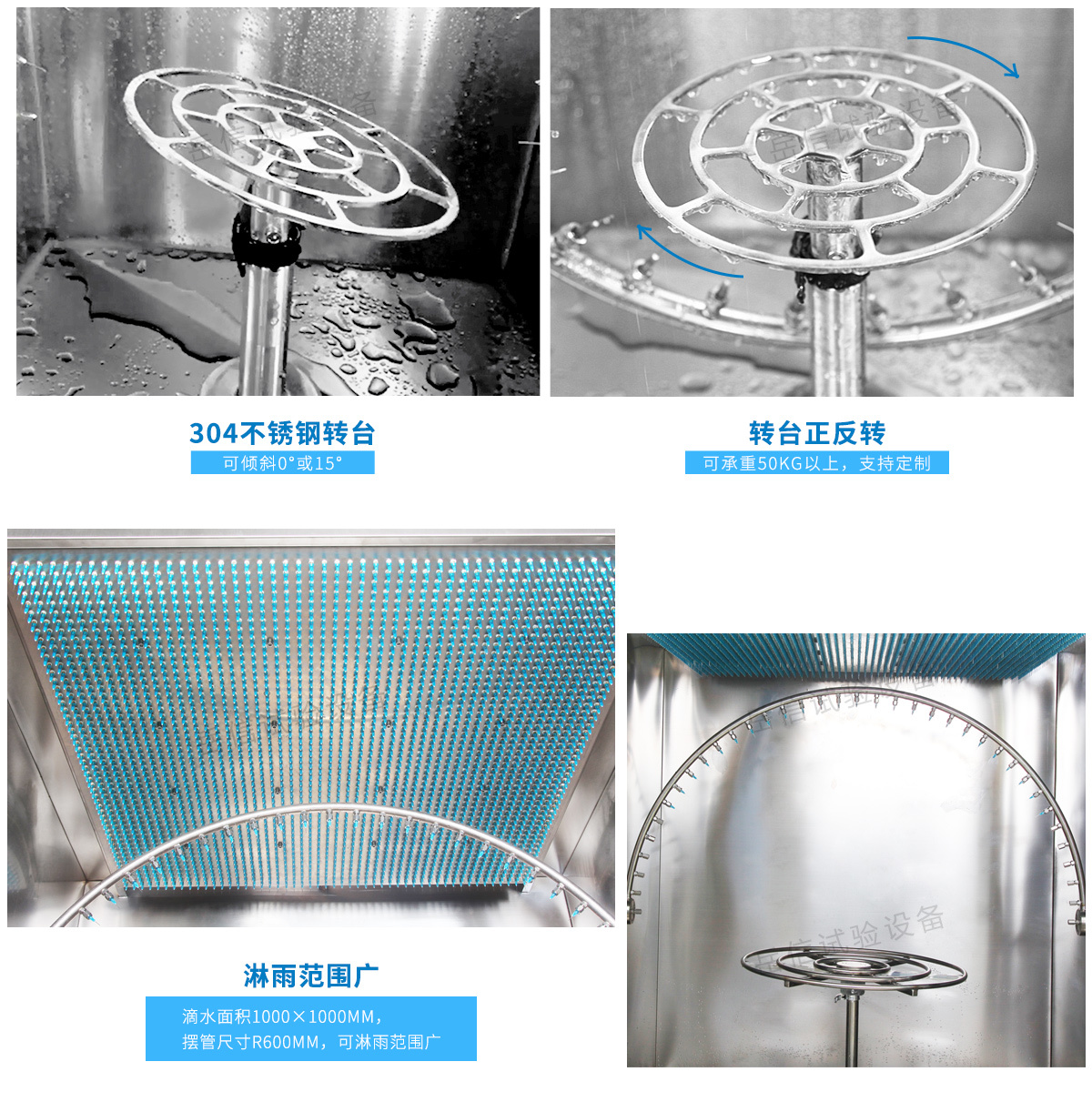

  • Large comprehensive rain box The flow rate of the rain plate is 1.08L/min Swing tube size R400mm Cyclic rain test Stable flow and even dripping Drip tank installed horizontally No slope on the water surface Even distribution of pinholes Large comprehensive rain box Stable flow rate High precision filter device Test without clogging Multi-angle waterproof test Wide range of rain water circulation box waterproof plug Test can be powered on overload protection electrical protection Large comprehensive rain box

    Key words:
    • Large comprehensive rain box
  • Size parameters Inner box size 1300×1300×1300mm
      Overall Dimensions 1750×1520×1950mm
      Recommended sample size ≤700×350×300mm
      Drip area 1000×1000mm
      swing tube diameter φ1200mm
      Turntable diameter φ600mm
      Nozzle diameter φ0.4mmm(IPX3/4) φ0.8mmm(IPX4K)



    performance parameter flow range IPX1/2:0-3.0 ml/min IPX3/4:0-3.0 L/min
      swing angle ≤350°
      Turntable bearing 50kg
      control method touch screen settings



    Conditions of Use voltage AC 220V
      power 1.0kw
      Recommended site size Length×width≥2500×2500mm
      Water conditions Pure water is preferred; tap water is also acceptable (with a 3-meter water pipe)
