IPX16B Manual Side-Spray Rain Test Chamber R400

Category:

IPX1-6 comprehensive rain test box

Product Center

Reference standard no:

Outer box dimensions: approximately 1350×3400×1750 Inner box dimensions: approximately 900×900×900 Specimen size: approximately ≤450×300×250 Testing requirements: customizable Material: 304 stainless steel Tested products: underwater connectors, sensors, LED lighting fixtures, and other electronic and electrical components Notable clients: Huawei, BYD, Jabil, DJI, Omron, FAW Group, Delixi Electric, and others Application fields: automotive components, electronics and electrical engineering, diving equipment, lighting, and more

As a professional equipment manufacturer, Yuexin always insists on the route of independent innovation and is committed to providing better waterproof testing solutions. The company has applied for more than 30 patent certificates and passed the national high-tech enterprise certification. The company has its own brand and has passed the GB/T29490-2013 intellectual property management system certification.

Can be customized according to customer requirements

Order Hotline:18122108955

Inquiry

Product description
parameter
Test rendering

construction scheme

Series Products

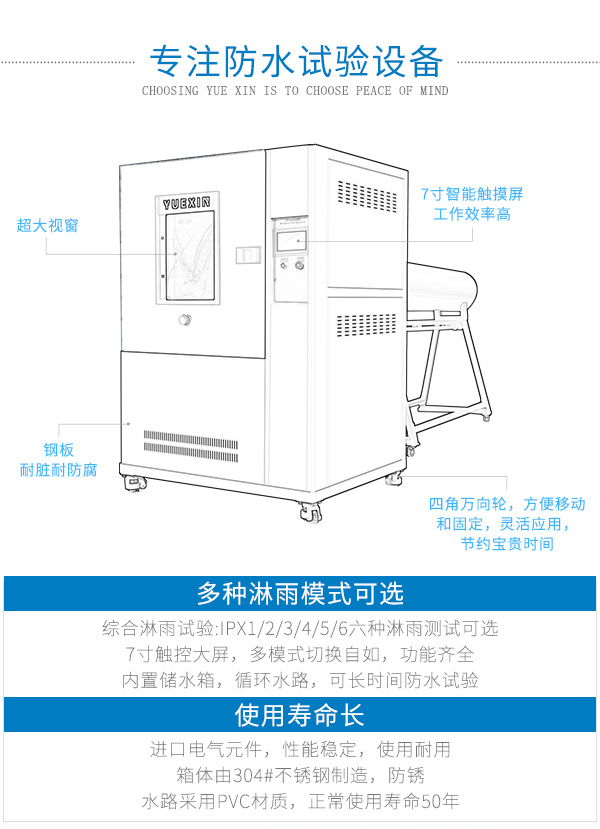

IPX1–6 Comprehensive Waterproof Test Chamber (Model YX‑IPX16B‑R400), designed for testing the ingress protection ratings of electronic and electrical products. It supports all six waterproof rating levels. Featuring a cabinet‑type design with cyclic rain‑spray functionality. Customers may contact us to discuss technical requirements; customizations are available.
Key words:
- IPX16 Comprehensive Rain Test Chamber

Size parameters	Inner box size	900×900×900mm
	Overall Dimensions	1350×3400×1750mm
	Recommended sample size	≤450×300×250mm
	Drip area	600×600mm
	swing tube diameter	φ800mm
	Turntable diameter	φ400mm
	Nozzle diameter	φ0.4mm
	Spray distance	0-2.8m (from the nozzle to the center point of the turntable)

performance parameter	flow range	IPX1/2:0-1.08L/min IPX3/4:0-2.0L/min IPX5: 12.5±0.625L/min IPX6: 100±5L/min
	swing angle	≤350°
	Turntable bearing	50kg

Conditions of Use	voltage	AC 380V
	power	3.0kw
	Recommended site size	Length×width≥1800×4500mm
	Water conditions	It is recommended to use pure water first; tap water is also acceptable (with a 3-meter water pipe)
