IPX16BS Automatic Side-Spray Rain Test Machine R400

Category:

IPX1-6 comprehensive rain test box

Product Center

Reference standard no:

Outer box dimensions: approximately Inner box dimensions: approximately Sample dimensions: approximately Testing requirements: customizable Manufacturing material: 304 stainless steel Tested products: underwater connectors, sensors, LED lighting fixtures, and other electronic and electrical components Collaboration cases: Huawei, BYD, Jabil, DJI, Omron, FAW Group, Delixi Electric, and others Application fields: automotive parts, electronics and electrical engineering, diving equipment, lighting, and more

As a professional equipment manufacturer, Yuexin always insists on the route of independent innovation and is committed to providing better waterproof testing solutions. The company has applied for more than 30 patent certificates and passed the national high-tech enterprise certification. The company has its own brand and has passed the GB/T29490-2013 intellectual property management system certification.

Can be customized according to customer requirements

Order Hotline:18122108955

Inquiry

Product description
parameter

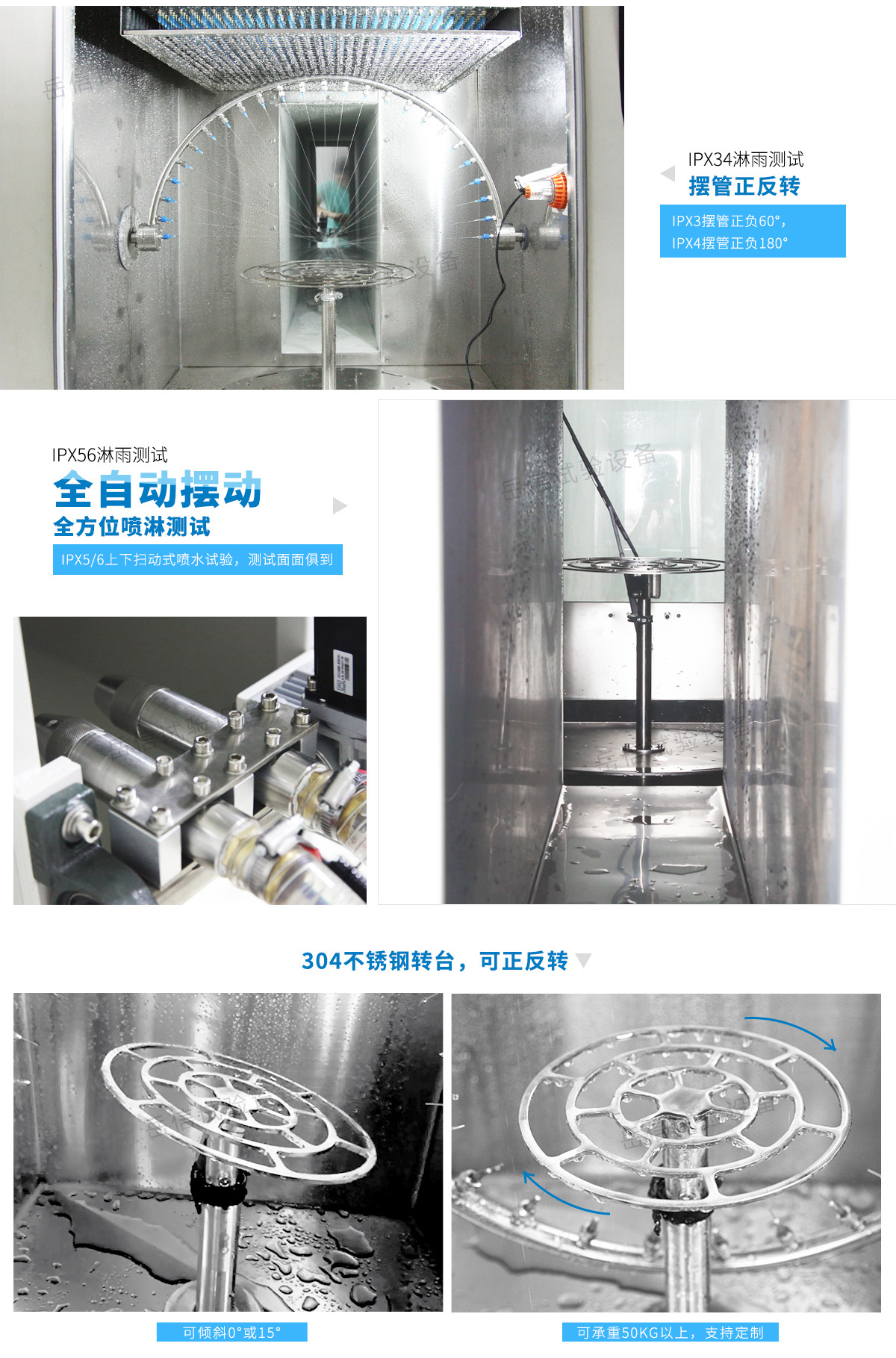

Test rendering

construction scheme

Series Products

The IPX16 comprehensive waterproof testing instrument (model YX‑IPX16BS‑R400), independently designed and developed by Guangzhou Yuexin, supports testing across six waterproof ratings—IPX1, IPX2, IPX3, IPX4, IPX5, and IPX6—and features a fully automatic oscillating spray function. It is suitable for evaluating electrical products such as motors, luminaires, cameras, and connectors.
Key words:
- IPX16 Comprehensive Waterproof Tester

Size parameters	Inner box size	900×900×900mm
	Overall Dimensions	1350×3400×1750mm
	Recommended sample size	≤450×300×250mm
	Drip area	600×600mm
	swing tube diameter	φ800mm
	Turntable diameter	φ400mm
	Nozzle diameter	φ0.4mm
	Spray distance	0-2.8m (from the nozzle to the center point of the turntable)

performance parameter	flow range	IPX1/2:0-1.08L/min IPX3/4:0-2.0L/min IPX5: 12.5±0.625L/min IPX6: 100±5L/min
	swing angle	≤350°
	water spray	Circular sweeping water spray
	Turntable bearing	50kg
	water spray	touch screen settings

Conditions of Use	voltage	AC 380V
	power	3.0kw
	Recommended site size	Length×width≥1800×4500mm
	Water conditions	It is recommended to use pure water first; tap water is also acceptable (with a 3-meter water pipe)
