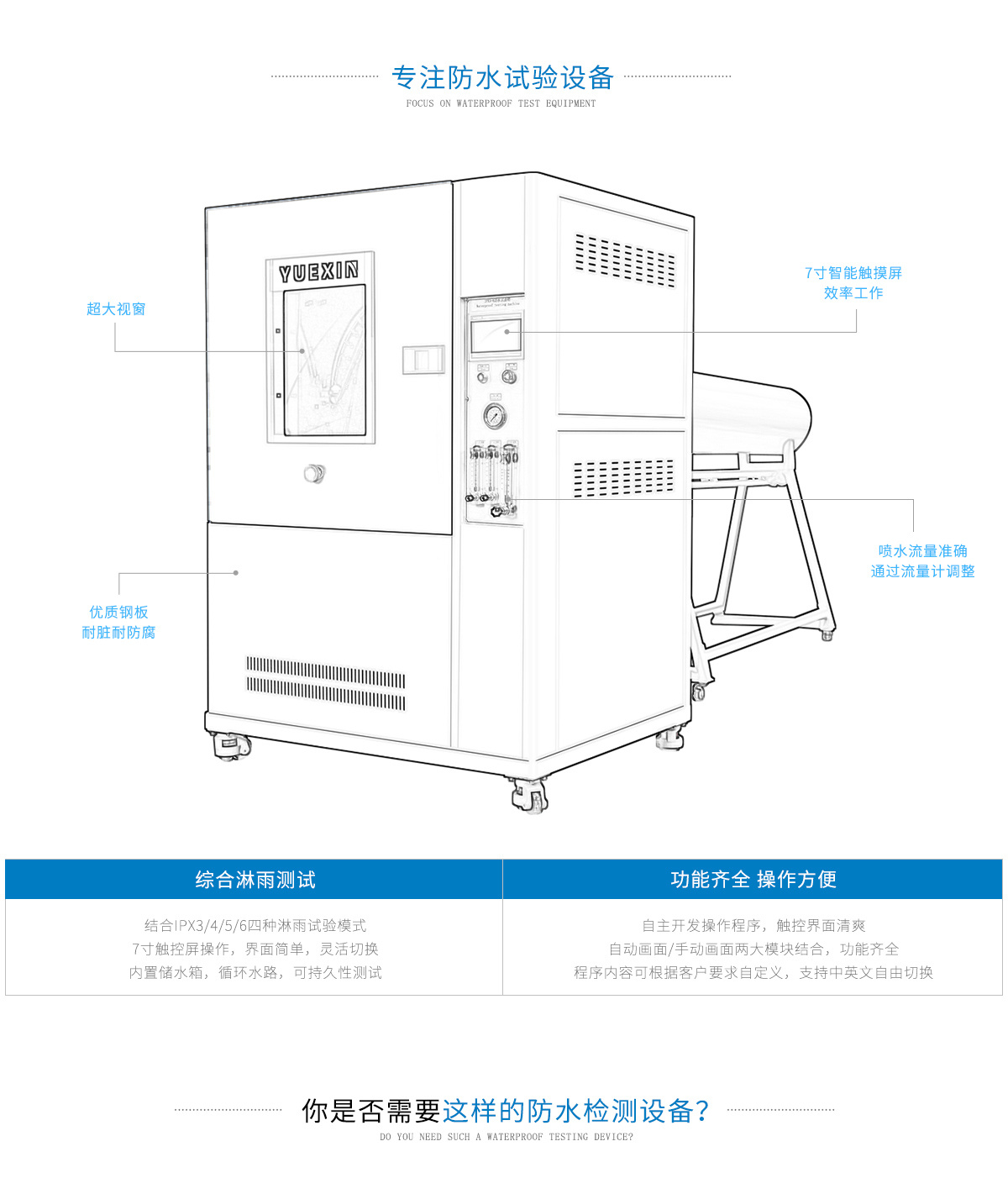

IPX36 comprehensive rain test box

Reference standard no:


As a professional equipment manufacturer, Yuexin always insists on the route of independent innovation and is committed to providing better waterproof testing solutions. The company has applied for more than 30 patent certificates and passed the national high-tech enterprise certification. The company has its own brand and has passed the GB/T29490-2013 intellectual property management system certification.


Can be customized according to customer requirements

Order Hotline:18122108955

  • IPX36 comprehensive rain test box LED touch screen Front door sensor Swing tube runs smoothly Stainless steel inner box automatic screen manual screen 5 major protection systems Protect the water pump from reverse IPX36 comprehensive rain test box Four kinds of rain test Waterproof test Spray detection real-time display Troubleshooting Fixtures can be customized Credit Demonstration Unit high-tech enterprises Installation and commissioning On-site installation and commissioning IPX36 comprehensive rain test box

    Key words:
    • IPX36 comprehensive rain test box
  • Size parameters Inner box size 900×900×1050mm
      Overall Dimensions 1350×3400×1750mm
      Recommended sample size ≤450×300×250mm
      swing tube diameter φ800mm
      Turntable diameter φ400mm
      Spray distance 2.8m (from the nozzle to the center point of the turntable)



    performance parameter flow range

    IPX3/4:0-2.0(L/min)

    IPX5:12.5±0.625   IPX6:100±5 (L/min)

      swing angle ≤350°
      Turntable bearing 50kg
      control method Touch screen setting/ manual flow adjustment



    Conditions of Use voltage AC 380V
      Sample supply voltage AC 220V
      power 3.0Kw
      Water conditions It is recommended to use purified water; tap water is also available (3 meters of water pipe is provided)
      Recommended site size Length×depth≥1800×4500mm
