IPX36 Comprehensive Rain Test Chamber, R600mm

Category:

IPX3-6 comprehensive rain test box

Product Center

Reference standard no:

Outer carton dimensions: approximately 1300×1300×1450 mm Inner carton dimensions: approximately 1450×3600×1850 mm Specimen dimensions: approximately 750×350×300 mm Testing requirements: customizable Material: 304 stainless steel Tested products: underwater connectors, sensors, LED lighting fixtures, and other electronic and electrical components Notable clients: Huawei, BYD, Jabil, DJI, Omron, FAW Group, Delixi Electric, and others Application fields: automotive components, electronics and electrical engineering, diving equipment, lighting, and more

As a professional equipment manufacturer, Yuexin always insists on the route of independent innovation and is committed to providing better waterproof testing solutions. The company has applied for more than 30 patent certificates and passed the national high-tech enterprise certification. The company has its own brand and has passed the GB/T29490-2013 intellectual property management system certification.

Can be customized according to customer requirements

Order Hotline:18122108955

Inquiry

Product description
parameter
Test rendering

construction scheme

Series Products

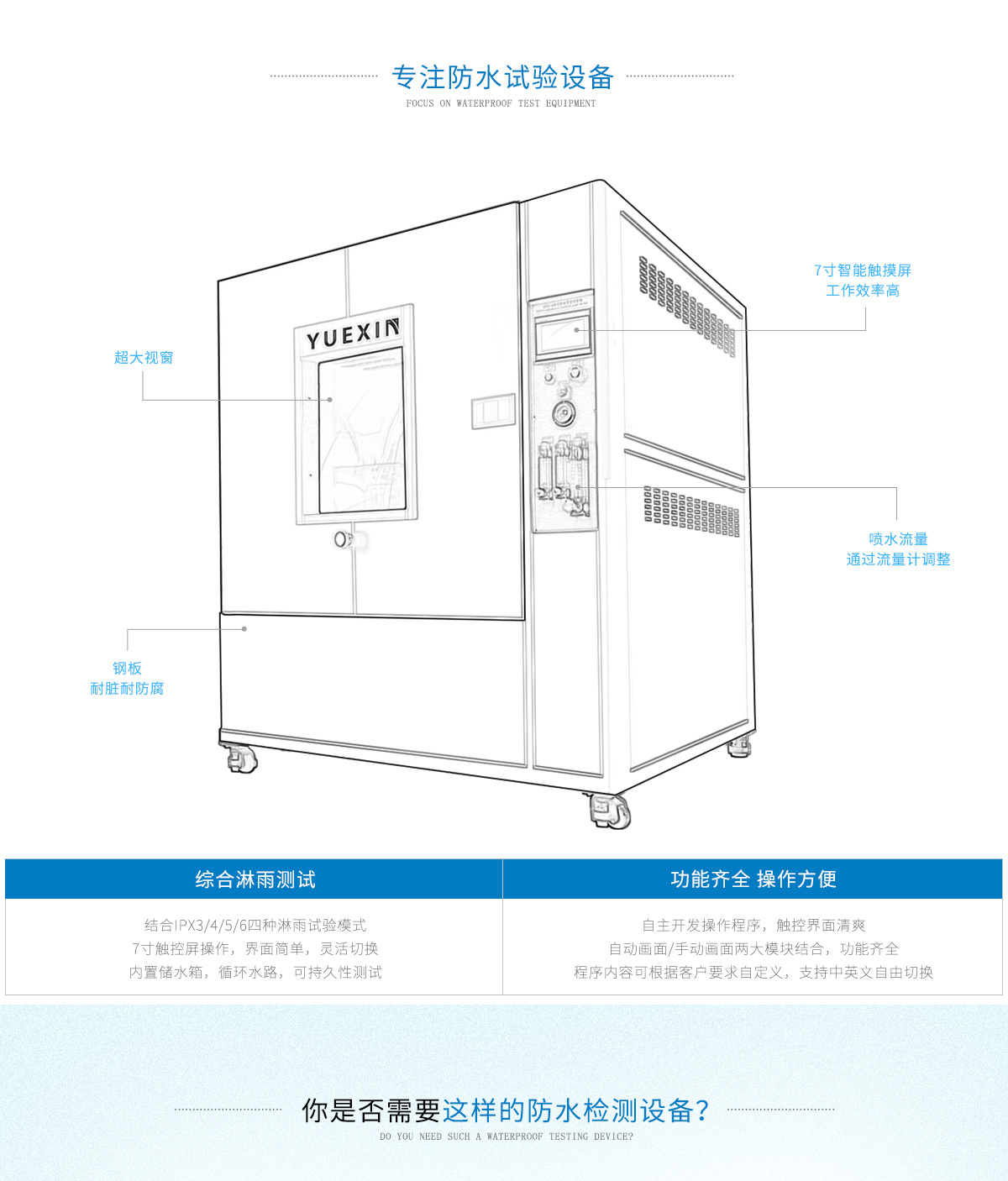

IPX36 comprehensive rain‑test equipment (model YX‑IPX36BS‑R600) conducts tests according to four waterproof ratings, including IPX3–IPX6, and is constructed from materials such as stainless steel.
Key words:
- IPX36 Comprehensive Rain Test Equipment

Size parameters	Inner box size	1300×1300×1450mm
	Overall Dimensions	1450×3600×1850mm
	Recommended sample size	≤750×350×300mm
	swing tube diameter	φ1200mm
	Turntable diameter	φ600mm
	Spray distance	2.8m (from the nozzle to the center point of the turntable)

performance parameter	flow range	IPX3/4: 0-3.0（L/min） IPX5: 12.5±0.625 IPX6: 100±5（L/min）
	swing angle	≤350°
	Turntable bearing	50kg
	water spray	Up and down sweeping water spray (fixed-point water spray can be manually set)
	control method	Touch screen setting/ manual flow adjustment

Conditions of Use	voltage	AC 380V
	Sample supply voltage	AC 220V
	power	3.0Kw
	Water conditions	It is recommended to use purified water; tap water is also available (3 meters of water pipe is provided)
	Recommended site size	Length×depth≥2000×4800mm
