IPX36BD Top-Spray Integrated Box R400

Category:

IPX3-6 comprehensive rain test box

Product Center

Reference standard no:

Outer carton dimensions: approximately 1350×1450×3800 mm Inner carton dimensions: approximately 900×900×900 mm Specimen size: approximately ≤450×300×250 mm Testing requirements: customizable Material: 304 stainless steel Tested products: underwater connectors, sensors, LED lighting fixtures, and other electronic and electrical components Notable clients: Huawei, BYD, Jabil, DJI, Omron, FAW Group, Delixi Electric, and others Application areas: automotive components, electronics and electrical engineering, diving equipment, lighting, and related industries

As a professional equipment manufacturer, Yuexin always insists on the route of independent innovation and is committed to providing better waterproof testing solutions. The company has applied for more than 30 patent certificates and passed the national high-tech enterprise certification. The company has its own brand and has passed the GB/T29490-2013 intellectual property management system certification.

Can be customized according to customer requirements

Order Hotline:18122108955

Inquiry

Product description
parameter
Test rendering

construction scheme

Series Products

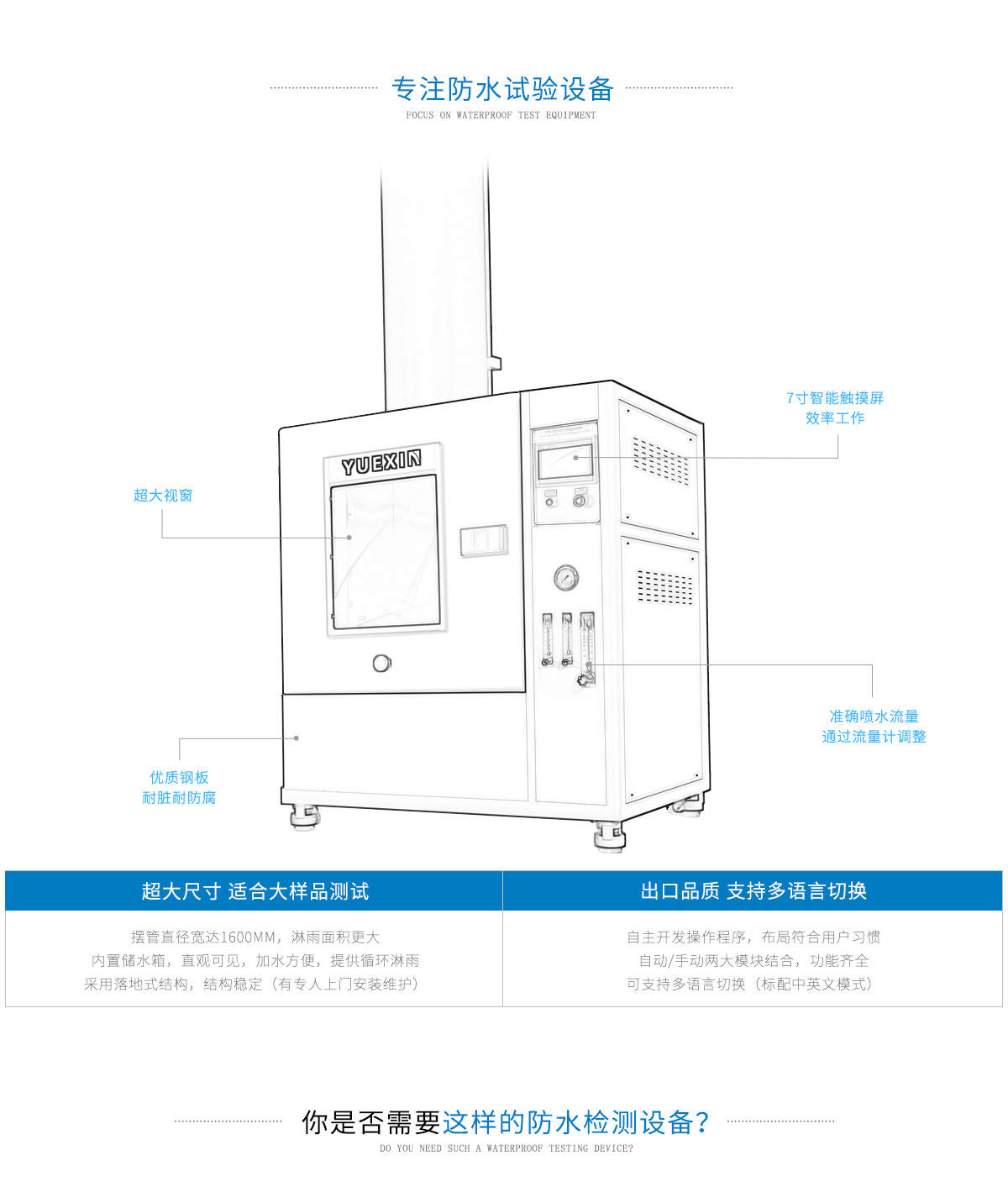

Guangzhou Yuexin’s independently designed and developed top-spray comprehensive rain‑test equipment features a built-in water tank for recirculating rainfall. It also supports protection ratings such as IPX3, IPX4, IPX5, and IPX6, and adopts a top‑spray configuration to save installation space and simplify testing for users.
Key words:
- Top-spray comprehensive rain test equipment

Size parameters	Inner box size	900×900×900mm
	Overall Dimensions	1350×1450×3800mm
	Recommended sample size	≤450×300×250mm
	swing tube diameter	φ800mm
	Turntable diameter	φ400mm
	Spray distance	2.8m (from the nozzle to the center point of the turntable)

performance parameter	flow range	IPX3/4:0-2.0（L/min） IPX5:12.5±0.625 IPX6:100±5 （L/min）
	swing angle	≤350°
	Turntable bearing	50kg
	water spray	water spray vertically
	control method	Touch screen setting/ manual flow adjustment

Conditions of Use	voltage	AC 380V
	Sample supply voltage	AC 220V
	power	3.0Kw
	Water conditions	It is recommended to use purified water; tap water is also available (3 meters of water pipe is provided)
	Recommended site size	Length×depth×height≥2000×2000×4500mm
	ground load capacity	≥250 kg/㎡
