IPX69K comprehensive waterproof testing machine

Category:

IPX69K comprehensive waterproof test box

Product Center

Reference standard no: 1056275760169181184

As a professional equipment manufacturer, Yuexin always insists on the route of independent innovation and is committed to providing better waterproof testing solutions. The company has applied for more than 30 patent certificates and passed the national high-tech enterprise certification. The company has its own brand and has passed the GB/T29490-2013 intellectual property management system certification.

Can be customized according to customer requirements

Order Hotline:18122108955

Inquiry

Product description
parameter
Test rendering

construction scheme

Series Products

Key words:
- IPX69K comprehensive waterproof testing machine

Size parameters	Inner box size	1000×1000×1000mm

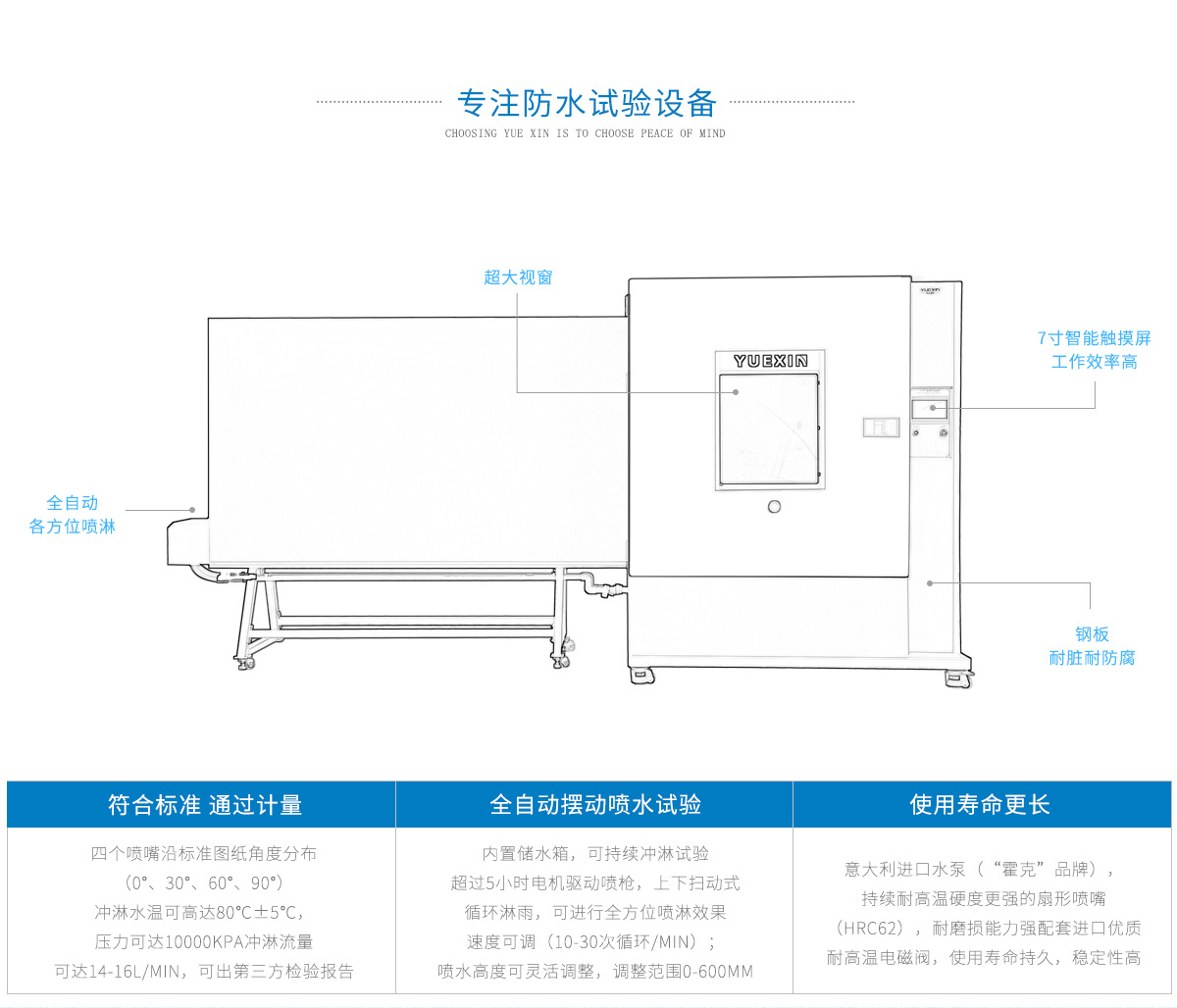

	Overall Dimensions	4000×1180×1180mm (the length of the aqueduct is 2450mm)
	Recommended sample size	≤450×350×300mm

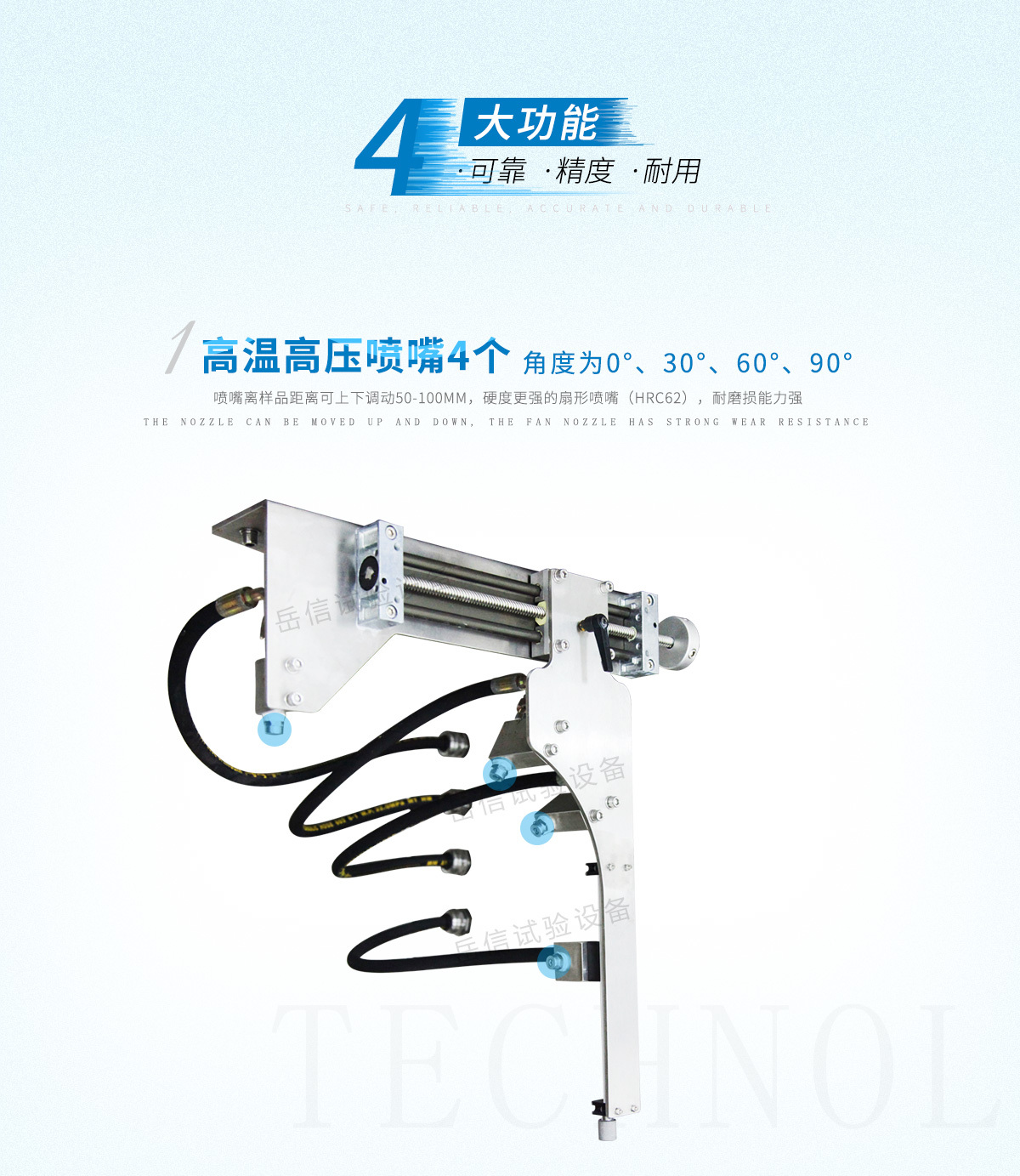

	Orifice Angle	0°, 30°.60°, 90° (vertical direction)
	Turntable diameter	φ400mm
	Nozzle diameter	φ6.3mm（IPX5/6K） φ12.5mm（IPX6）
	Strong spray distance	2.8 meters (the nozzle is away from the center of the turntable)
	High temperature spray distance	100-200m (can be adjusted manually)

performance parameter	flow range	IPX5:12.5 /IPX6:100 /IPX6K:75 (L/min) tolerance value: ±5% IPX9:15±1 (L/min)
	IPX9 water spray pressure	8000-10000Kpa
	IPX9 nozzle water spray impact force	0.9-1.2N (force value calibration system visible)
	IPX5/6 strong water spray mode	Up and down circular sweeping water spray (fixed-point water spray can be adjusted manually)
	Turntable bearing	50kg

Conditions of Use	voltage	AC 380V
	power	10.0KW
	Recommended site size	Length×width≥4500×1800mm
	Water conditions	Tap water (supporting 3 meters water pipe)
